Versatility and Performance on Powerful Agricultural Machinery
The BMF.R2 is a robust multifunction bucket designed for medium to high-power agricultural machines.
It combines a high-capacity bucket with a grapple or silage jaw system, providing a versatile solution for handling, loading, and rehandling a wide range of materials.
Available widths: 1.10 m to 2.60 m
Volumetric capacities: 0.95 m³ to 1.80 m³
NEW
Large-volume multifunction bucket
The BMF.R3 is part of the Lamy multifunction bucket range. It is designed for handling, loading, and rehandling a wide variety of materials with high efficiency. It combines a large-capacity bucket with a hydraulic grapple or jaw system, ensuring secure gripping and retention of materials during operations.
Available widths: 2.45 m to 2.60 m
Volumetric capacities: 2.00 m³ to 2.10 m³
Designed for agricultural operations requiring efficient straw handling, whether for transport, loading, or placement in storage areas. It combines strength, maneuverability, and precision to ensure fast, secure, and stable material handling.
Available widths: 1.80 m to 2.45 m
Volumetric capacities: 1.25 m³ to 1.60 m³
A tool specifically designed for straw handling.
Agricultural equipment designed to lift, move, and load straw bales safely. It is intended for use on agricultural or material handling machines with sufficient power and a suitable attachment system.
Its design ensures good operator visibility, a stable grip on materials, and easy adaptation to different carriers.
Available widths: from 1.00 m to 2.00 m
Capacity: 1 bale
Compact model for excellent visibility.
Handling grapple specifically designed for handling forage bales (round or rectangular) directly with agricultural machinery. Its compact design provides excellent visibility for the operator while ensuring a stable and secure grip on bales of different sizes.
Capacity: 1 to 2 bales
It is specifically designed for handling straw bales on agricultural machinery or forklifts. It enables fast and safe loading of straw bales for transport, storage, or feeding, thanks to a reinforced structure and a suitably designed jaw system.
Available heights: from 1.10 m to 2.60 m
Capacity: from 2 to 5 bales
Capacity: 4 t and 6 t
Allows handling of tractor equipment inside the farm or between different locations on the agricultural holding.
Bolted hitch compatible with all machine brands.
Width-adjustable hooks compatible with all 3-point linkage implements.
Storage pin for ball joints.
Simple towing pin for maneuvering trailers.
OPTIONS
Towing system for all trailers equipped with a ring, with a pin offset to facilitate trailer maneuvering.
Towing system with K80 ball hitch for heavy-duty trailers.
2 straight electro-forged fingers Ø 35, length 1100 mm for bale handling.
Support only with 4 foldable straight electro-forged fingers Ø 35, length 1100 mm for bale handling.
Storage bracket for options 5 and 6.
It is designed for handling, loading, and rehandling agricultural, industrial, or construction materials. It combines a solid base with a grapple and/or jaw system allowing a secure grip on materials.
Available widths: from 1.70 m to 3.00 m
Volumetric capacities: from 1.20 m³ to 2.00 m³
S Series Utility Grapple Fork
Fork built on the basis of 2 flats in FEM II or III profile receiving the pallet forks.
Available widths : from 1.80m to 2.80m,
Volumetric capacities : from 1.10m3 to 1.70m3,
Heavy-duty high-capacity snow bucket
The snow bucket is a reinforced high-capacity bucket designed for snow handling. It features internal and external reinforcements and integrated extensions, with capacities ranging from 500 L to 6,000 L depending on configuration.
Available widths: from 1.80 m to 5.00 m
Volumetric capacities: from 500 L to 6,000 L
The Fixed Fork Carrier Frame is a robust attachment for material handling equipment, designed to mount and stabilize forks for the safe transport of pallets or various materials, ensuring efficient and secure handling on construction sites or in agricultural operations. It is equipped with forks compliant with FEM II, III, and IV standards.
Available widths: from 1.00 m to 2.60 m
Capacities: from 2.5 t to 6 t
The Side shift carriage (TDL) is a handling attachment that allows lateral movement of a load without moving the machine, enabling precise, fast, and safe positioning of pallets, big bags, or materials, even in confined spaces.
The Side tilt carriage (TCD) is a handling attachment designed to correct load inclination and adjust its lateral position. It uses a hydraulic rotation system to ensure precise and safe handling of pallets and materials on all types of terrain.
Bucket designed to operate in the most extreme conditions.
Suitable for loading with high-power machines.
Available widths: from 2.00 m to 3.00 m
Volumetric capacities: from 800 L to 5,000 L
The cereal bucket: the benchmark for high-volume handling.
Specially designed for the precise handling and loading of cereals and fine materials, thanks to its adapted structure and optimized opening, which minimizes losses during handling and feeding operations.
Available widths: from 1.60 m to 2.60 m
Volumetric capacities: from 700 L to 3,300 L
Forward tipping bucket, even at height.
The BHD.TP-2V high-tip bucket is designed to facilitate high-level dumping operations thanks to its two powerful hydraulic cylinders, providing optimized material discharge even in hard-to-reach areas.
Available widths: from 2.30 m to 3.00 m
Volumetric capacities: from 1,960 L to 4,200 L
4 FUNCTIONS IN 1:
Available widths: from 1.50 m to 2.30 m
Volumetric capacities: from 500 L to 1,000 L
Ideal for removing stones from fields, sorting, and cleaning.
Specifically designed for sorting, cleaning, and handling materials while allowing small elements or dust to fall through. It is particularly suited for removing stones from fields, sorting crops, or cleaning storage areas.
Available widths: from 1.10 m to 2.50 m
Ideal for urban works. Right or left-hand tipping.
It is designed for the handling and transport of various materials, offering a robust structure and an optimized opening to facilitate loading while ensuring reliable field performance. Its shape is specifically designed to allow complete discharge.
Available widths: from 1.80 m to 2.40 m
Volumetric capacities: from 500 L to 900 L
The DC.FP push-floor bucket is a bucket equipped with a moving floor system that enables smooth unloading of materials, making it ideal for handling operations and effortless dumping without manual intervention.
Available width: 2.80 m
Volumetric capacity: 4,000 L
4 FUNCTIONS IN 1:
Available widths: from 1.20 m to 2.00 m
Volumetric capacities: from 300 L to 500 L
Most reinforced model in the range.
The upper and lower sections are reinforced with 8 mm steel plate box sections, while the side plates and intermediate parts are made of 15 mm steel.
The cutting edges are made of 150 x 20 mm steel. The cylinder pivot joints have a 60 mm diameter.
Equipped with a bolted counter-blade or bolted teeth, depending on configuration.
Available widths: from 1.70 m to 2.70 m
Volumetric capacities: from 700 L to 2000 L
4 FUNCTIONS IN 1:
The silage rake is specifically designed for the efficient removal of silage from a silo, allowing clean extraction of the material while maintaining a smooth and stable face. Robust and suited for intensive agricultural work, it facilitates loading, reduces losses, and optimizes daily management of animal feeding or biogas production units.
The RL slurry scraper is a farming tool specifically designed for leveling and spreading slurry on the ground. It allows the material to be distributed evenly, improves surface uniformity, and facilitates crop work or the maintenance of spreading areas.
A tool designed for bale handling. The Bale Clamp Carriage (TPB) from LAMY Les Constructeurs is specifically designed for the secure gripping, transport, and positioning of forage or waste bales, whether round or rectangular. Its robust and precise design ensures reliable and efficient handling, even on uneven terrain or during frequent loading operations.
The Box Tipper is an equipment designed for the rapid tilting and emptying of pallet boxes containing agricultural or industrial products. Robust and precise, it allows for the efficient emptying of fruits, vegetables, or other bulk materials while ensuring a controlled flow and safe operation.
2 versions available: top holding frame or Ertalon roller frame.
For the recovery of materials and direct filling into Big-Bags via a hydraulic trapdoor.
The Big-Bag Filling Bucket (GRBB) is an attachment specifically designed for the precise and rapid filling of big-bags, allowing bulk materials to be easily loaded into flexible containers while ensuring a stable grip and a controlled filling flow.
The Big-Bag Handling Boom (TEB) is an attachment specifically designed to facilitate the picking, lifting, and positioning of big-bags with agricultural or handling machinery, providing safe and efficient handling of high-capacity bags.
Jibs are handling attachments designed to facilitate the safe lifting, positioning, and manipulation of heavy loads using agricultural or construction machinery, offering a flexible solution for outdoor lifting operations.
Length: 0.50m with a 4t capacity.
Hook: Removable 360° swivel hook with safety latch.
OPTIONS: Storage stand for POD MP05.
Length: 3m
Capacity: 980kg / 4000kg
Hooks: Two removable 360° swivel hooks with safety latches.
Length: from 1.00m to 3.00m
Hook: Removable 360° swivel hook with safety latch.
Models: Two adjustable versions: 90° (45° left/right) or 170° (85° left/right).
Static load capacity: 950kg.
An assembly that slides onto forks for handling heavy loads.
Capacity: 3000kg / 4000kg
The Wood Grab is hookable on fork carriages. The clamps are formed from 15mm thick plate, and the opening can reach up to 2.24m, which is adjustable via 3-position setting pins.
The grab is designed for handling logs, timber, roundwood, and bolts. Mounting is done on an FEM carriage.
The Log Grapple is manufactured from S355 steel and features two cylinders with hydraulic dampers.
The grapple is equipped with mechanical opening and closing stops.
High-strength material
Ideal for intensive work, it will meet your expectations!
This fork is a very robust model for handling various types of waste and can work in the most extreme conditions.
Available widths: from 1.80m to 2.80m
Volumetric capacities: from 1.10m³ to 1.70m³
The Special Potato Bucket is the ultimate high-volume solution, specifically engineered for the gentle yet efficient handling of potatoes and other delicate root crops.
Available Widths: From 1.60m to 2.60m
Volumetric Capacities: 700L to 3300L
Maximized Volume: Designed with a specific geometry to handle large quantities of crops while respecting the constraints of the machine.
Crop Protection: Built to minimize bruising and damage to the produce during loading and unloading.
Versatile Sizing: A wide range of capacities to fit various agricultural setups, from medium farms to large-scale industrial operations.
The BC Grain Bucket is a high-capacity reinforced bucket designed for the handling and loading of grains and other bulk materials. It features internal and external reinforcements, along with integrated extensions, offering capacities ranging from 500L to 6000L depending on the configuration.
Available Widths: From 1.80m to 5.00m
Volumetric Capacities: 500L – 6000L
Reinforced Design: Built with internal and external structural reinforcements for heavy-duty bulk handling.
Integrated Extensions: Designed to maximize volume for light but bulky materials like cereals.
Versatility: Wide range of sizes to suit different machine types and operational needs.
The Floating Fork Carriage is an attachment that allows the forks to automatically adapt to ground irregularities or uneven loads, providing safer and more efficient handling of pallets, bales, or packaged materials on construction sites and farms.
It is equipped with eye-type forks. The spacing between the forks can be adjusted by sliding them along a Ø60mm galvanized shaft. This carriage is also fitted with a load backrest for added security.
Available Widths: Variable widths
Capacities: From 4t to 6t
Self-leveling: Floating design compensates for uneven terrain.
Adjustable: Sliding forks on a zinc-plated axis for versatile load handling.
Safety: Integrated backrest to prevent materials from falling toward the machine.

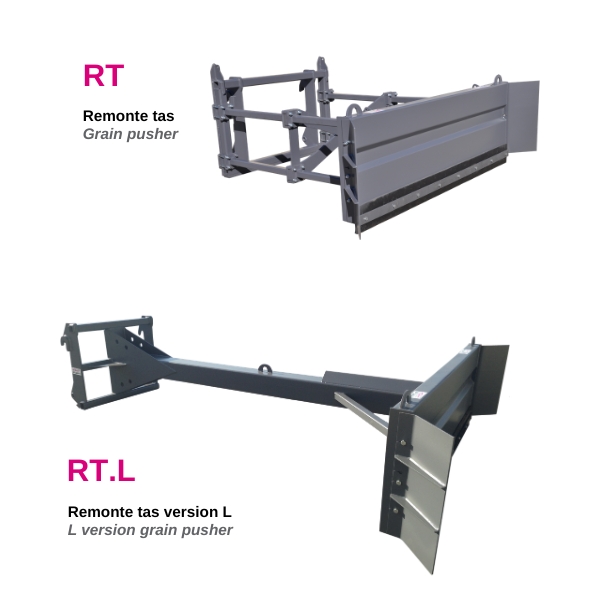

The RT Grain Pusher is an agricultural attachment designed to facilitate the recovery and mounding of materials such as soil, compost, manure, or other bulk items. It allows for the rapid grouping of scattered volumes during sorting, cleaning, or handling tasks.
As the name suggests, this equipment is widely used for grain storage but is also suitable for other applications. It is equipped with two deflectors to prevent side spillage and a rubber blade for a complete scrape of the floor. Available in models 2.40m wide with lengths reaching up to 4m for the largest versions, this grain pusher is particularly suited for large-scale farms.
OPTION:
1m extension (can be added cumulatively)
This lighter grain pusher is available in lengths from 1m to 4m. It is compatible with smaller machines and accessible to all users.
The spreader beam is a lifting attachment designed to evenly distribute the weight of suspended loads, ensuring stable and secure handling of pallets, crates, coils, or other heavy materials using agricultural or construction machinery.
The snow bucket with folding wings is a snow removal attachment designed to quickly move large volumes of snow, thanks to its adjustable side wings that increase working width and contain the snow for maximum efficiency.
The sugar cane grab is a high-performance handling tool, specifically designed for loading and stacking bulk or bundled sugar cane. Its open-work structure and profiled tines allow for optimal penetration into the vegetation while ensuring powerful and constant clamping.
The MTBB (Big Bag Lifter) is the reference tool for the secure handling of large-capacity bags.
High-strength frame: allows for the handling of multiple Big Bags at the same time. Big Bags are held against the carriage while the machine is in motion. It is equipped with a bolt-on hitch to adapt to all machine models. The MTBB is equipped with 12 hooks and can handle up to two Big Bags of 1,700 kg each. A single operator is sufficient for loading in a safe environment.
This equipment offers multiple advantages, notably a gain in productivity:
Loading of two Big Bags at once
Rapid hitching
Easy maneuvering
The Material Handling Basket (PM.M) is a robust and secure tool, specifically designed for the transport and storage of various loads on construction sites. Unlike a work platform, this basket is exclusively dedicated to material logistics.
!!! Not approved for passenger transport !!!
